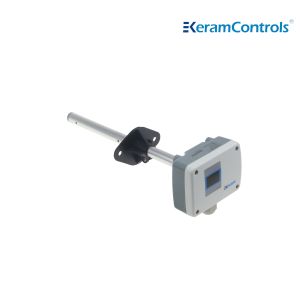

RS485 LCD display air velocity transmitter for electronic field
Description
The KAV110 series wind speed transmitter is equipped with a
microcontroller in order to accurately calibrate the whole process
data, and digitally display the linear compensation and temperature
compensation, so that the transmitter will have high precision and
the measured data will be more accurate.
Specification
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Dimensions(mm)
Ordering Guide
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe |
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | |
| 4-20mA | (3) | | | 0…5 m/s | (C) | | |
| Rs-485 | (4) | | | 0…10 m/s | (D) | | |
| | | | 0…15 m/s | (E) | | |
| | | | 0…20 m/s | (F) | | |
| | | | 0…30 m/s | (G) | | |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order,
generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
